Big Healey Brake Caliper Upgrade

Standard Big Healey brake caliper upgrade, lightweight alloy caliper for Big Healey, Austin Healey four pot caliper

Big Healey standard brake caliper upgrade

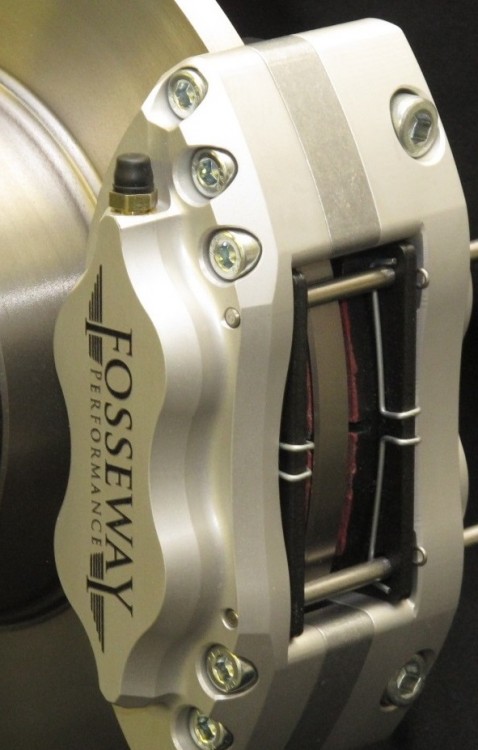

Our Big Healey brake caliper kit features a specially produced lightweight 6082 aluminium four piston alloy caliper. This has been designed to bolt straight on to the front suspension upright on all cars originally fitted with disc brakes (up to late model BJ8’s chassis number 26704).  The combination of increased pad area and a lightweight four piston caliper will vastly improve the braking on all cars originally fitted with the Girling 14 caliper.

The caliper can be specified to work with either the original brake discs fitted up to BJ8 #26704 or, if you prefer to use later BJ8 1/2″ thick discs we can build the calipers to accommodate these. (Please note that the later disc can sometimes interfere with the caliper mounting brackets and may require a small amount of material to be removed from these to give full clearance)

 The Fosseway Performance uprated  brake caliper incorporates the following features:

  • Made in the UK
  • Elegant design in a choice of finish
    • Standard silver anodized body
    • Optional extra durable black hard anodized body
  • Modern four piston caliper design
  • Strong and rigid 6 bolt caliper body construction
  • Internal fluid crossovers
  • Fully dust sealed
  • High temperature fluid seals

Standard Big Healey Brake Caliper Upgrade includes:

  • 2x Lightweight four piston calipers
  • Stainless steel braided brake lines for the front of the car
  • EBC Ultimax brake pads

Big Healey Standard Brake Caliper Upgrade (standard silver)        £490.00 + VAT

Big Healey Standard Brake Caliper Upgrade (optional black)           £565.00 + VAT
